Pulse JG0-0027NL 1x6 Tab-UP 10-pin RJ45 With Internal Magnetics

Name: Pulse JG00027NL 1x6 TabUP 10pin RJ45 With Internal Magnetics
Brand: LINK-PP
Price: 0.11 USD

China Pulse JG0-0027NL 1x6 Tab-UP 10-pin RJ45 With Internal Magnetics wholesale

Brand Name : LINK-PP

Model Number : JG0-0027NL

Certification : ISO9001,SGS,UL,CE,REACH163

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.11-$12

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 208K/Month

Delivery Time : Stock

Packaging Details : Tray

Designe PN# : JG0-0027NL

Made In China : LPJG68851AWNL

Category : Cat5/6

Interface : 10/100/1000Mbps

LED : G-G

Samples : Available

Contact Now

Pulse JG0-0027NL 1x6 Tab-UP 10-pin RJ45 With Internal Magnetics

PulseJack JG0-0027NL

Trader Part Number

JG0-0027NL

Price Break	Unit Price	Extended Price
1-5	A	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made in China

LPJG68851AWNL

Manufacturer

LINK-PP China

Description

Multi 6 Ports

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

200,000 PCS or 4 weeks

10/100/1000 Base-T RJ45 1xN Tab-UP Integrated Connector Module (ICM) with or without LEDs

JG0-0027NL ELECTRICAL SPECFICATIONS @25℃
1.Turns Ratio:
TX = 1CT:1CT RX = 1CT:1CT
2.OCL(100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Insertion Loss:
1～100MHz:-1.5dB MAX
4.Return Loss(@100Ω±15%):
2～30MHz:-16dB MIN
60～80MHz:-10dB MIN
5.Crosstalk:
0.1～100MHz:-30dB MIN
6.Hipot Test: 1500Vrms MIN
7.Operating Temperature: -40℃ TO +85℃.

Pulse JG0-0027NL 1x6 Tab-UP 10-pin RJ45 With Internal Magnetics

Product Tags:

multi port connector

dual rj45 jack

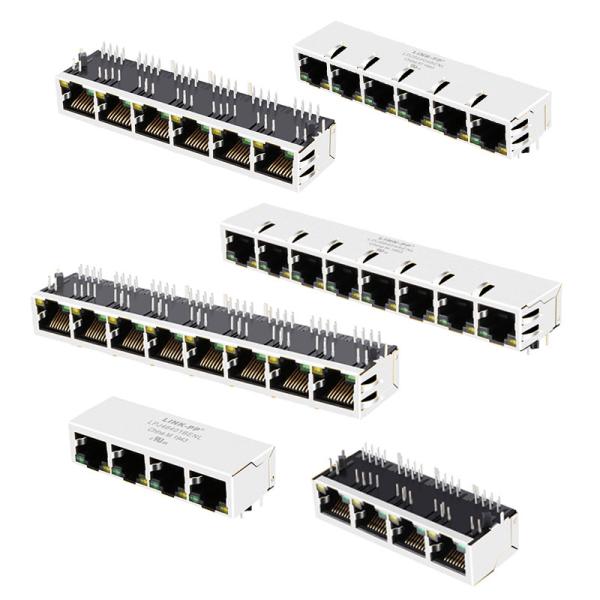

Pulse JG0-0027NL 1x6 Tab-UP 10-pin RJ45 With Internal Magnetics Images
